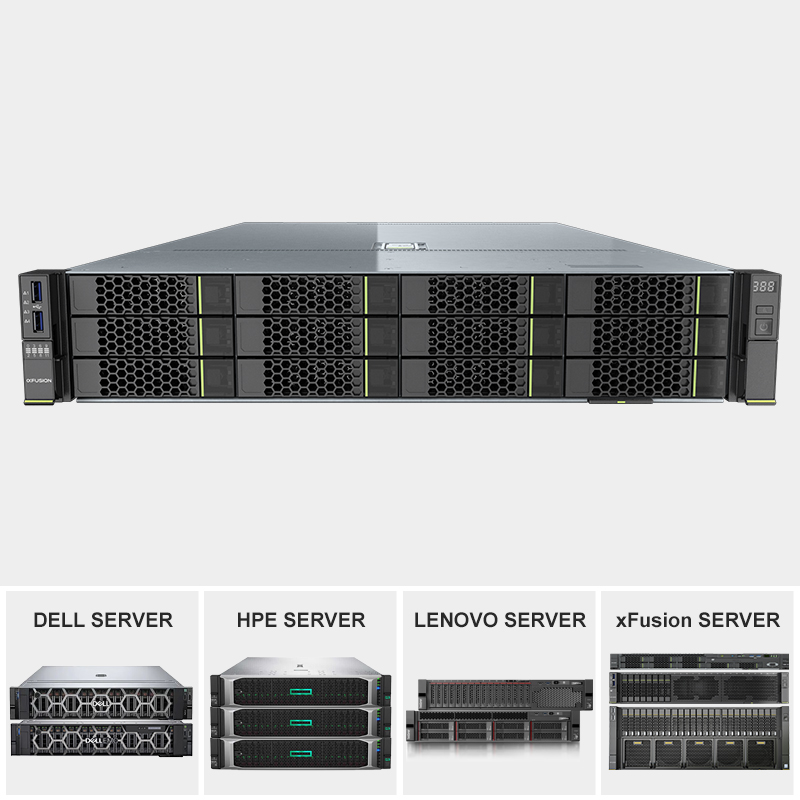

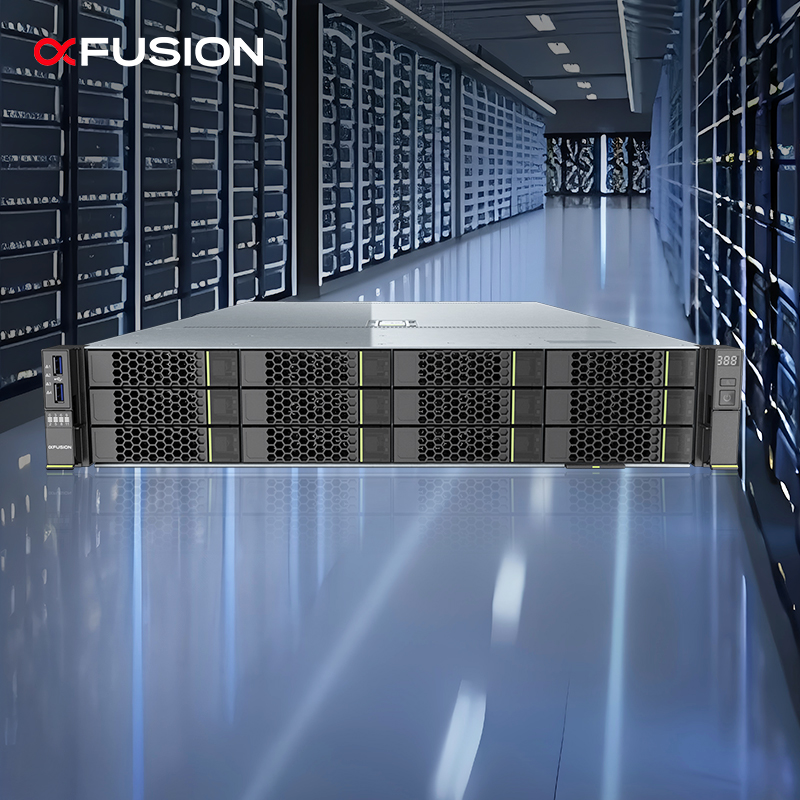

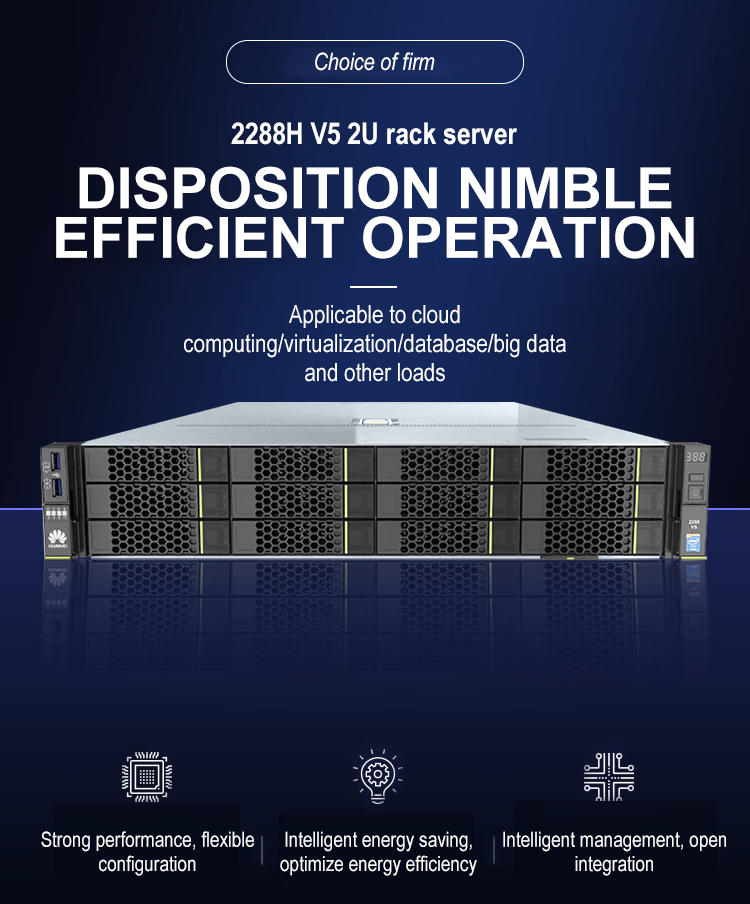

| Server Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors |
1/2 x 1st Gen Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 x 2nd Gen Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W |
| Local Storage |

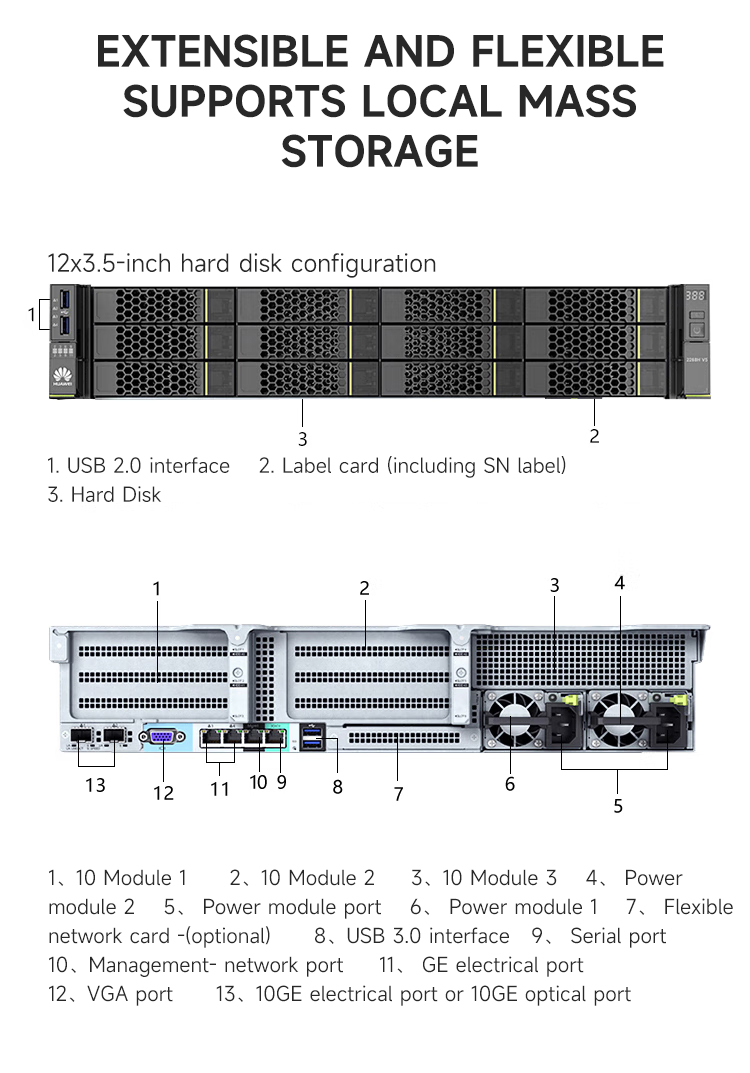

Supports hot swapping and flexible disk configurations: • 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD hard drives • 12/16/20 x 3.5-inch SAS/SATA hard drives • 4/8/12/24/28 NVMe SSD hard drives • Flash storage: Dual M.2 SSDs |

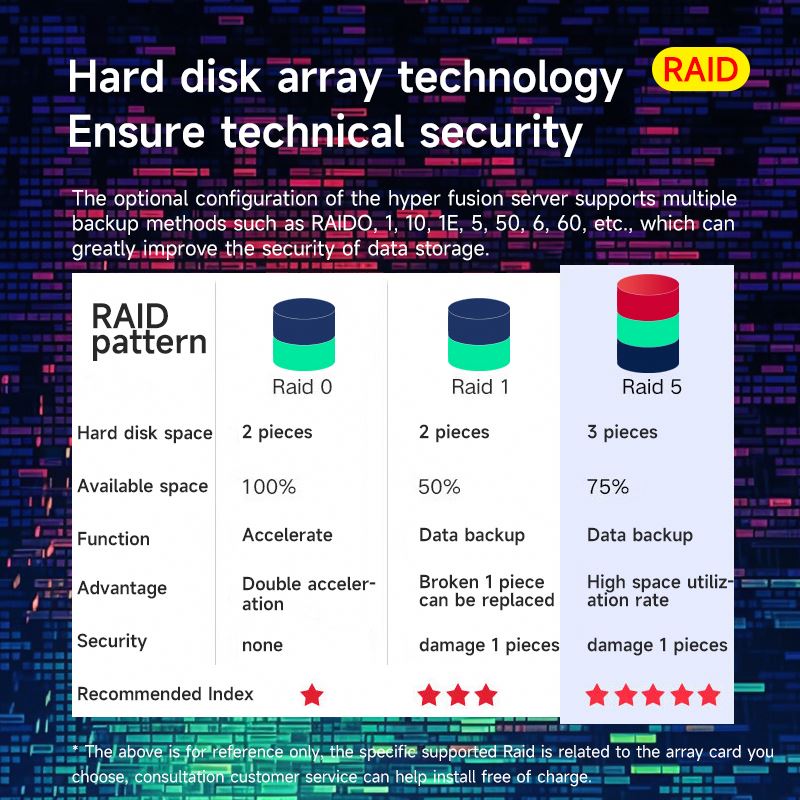

| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, 60, etc. Supports Cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, and web remote configuration. |
| Network |
On-board NIC: 2 x 10GE ports and 2 x GE interfaces Flexible card: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB interface |
| PCIe Extensions | Up to 10 PCIe 3.0 expansion slots, including 1 dedicated PCIe expansion card slot for RAID cards and 1 flexible LOM card slot. |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy. |
| Dimensions (HxWxD) |
3.5-inch hard disk chassis: 86.1mm x 447mm x 748mm 2.5-inch hard disk chassis: 86.1mm x 447mm x 708mm |
| Power Supply Units |

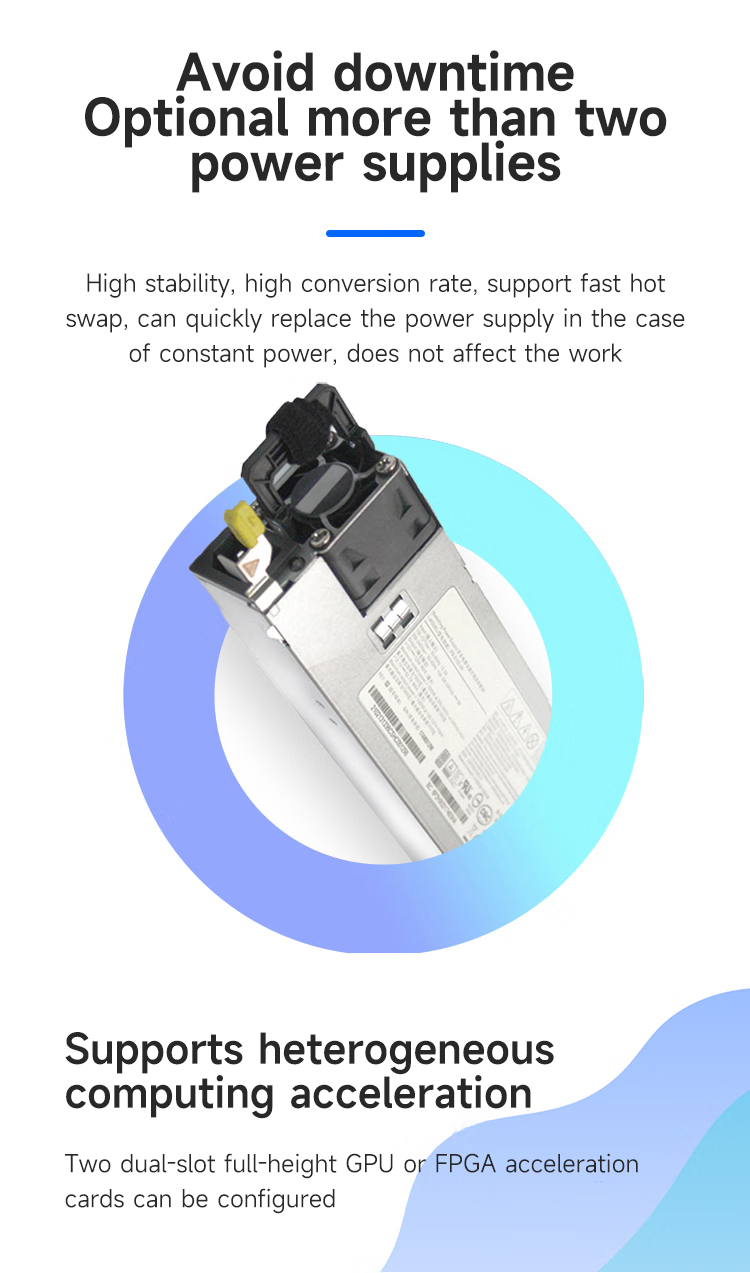

2 hot-swappable PSUs supporting 1+1 redundancy with configuration options: • 550W/900W AC Platinum PSUs • 900W AC Titanium PSUs • 1,500W AC Platinum PSUs • 1,500W 380V HVDC PSUs • 1,200W -48V to -60V DC PSUs |
