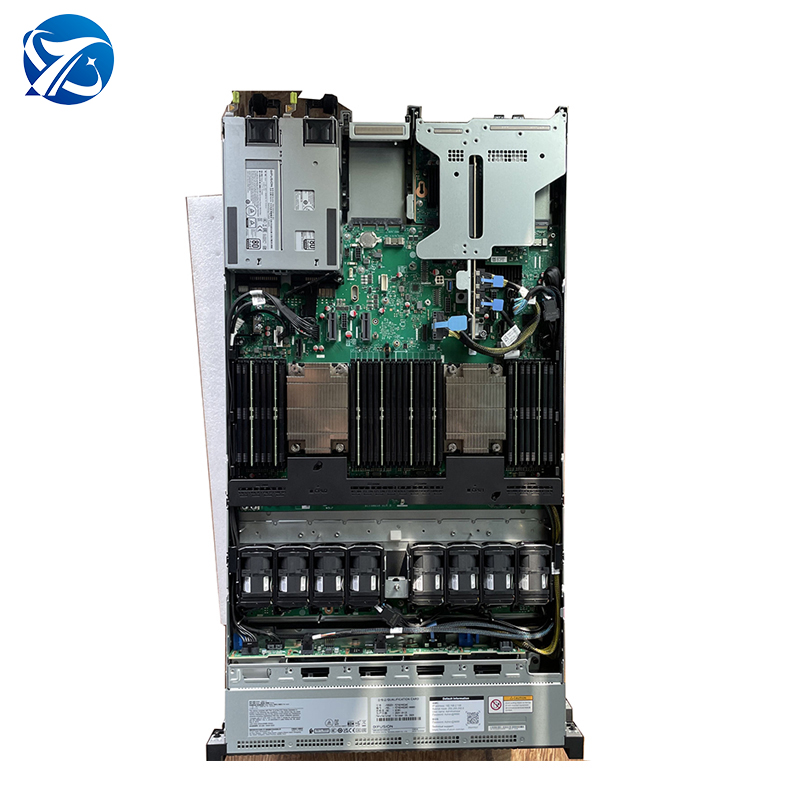

FusionServer 1288H V7 (hereinafter referred to as 1288H V7) is designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise market, and telecom business applications. It is a new generation 1U 2-socket rack server with a wide range of applications. The 1288H V7 is suitable for IT core business, cloud computing, virtualization, scientific computing, enterprise or telecom business applications, and other complex workloads. It features low energy consumption, strong expansion capabilities, high reliability, easy management, and easy deployment.
| Server Model | FusionServer 1288H V7 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Drive bays |
Supports various drive configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Rail | Rail |
| Height X Width X Depth |
Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm |
| Power Supply Units |
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs: 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 2000 W AC Platinum PSUs: 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone so we can prioritize your inquiry.
Our whole machine products provide a 3-year replacement warranty. We maintain a complete supply chain to deal efficiently with any after-sales problems.
All components are original brand chips, and we strictly test all components before each delivery. Furthermore, we have successfully passed the SGS annual audit and Alibaba's financial inspection.
We accept Alipay, credit card, bank card transfers, and T/T to eliminate payment security concerns.
Different products have different MOQs. Let us know your requirements, and we will try our best to accommodate your needs. Small orders are also popular.
We have specialized in this line for many years and focus on quality, believing that only good quality supports long-term business. While external appearances may look the same, internal component differences create variations in price and quality levels.
