Shenzhen 2024 New Server dell PowerEdge R760 Intel Xeon 4410Y H755 Raid Card 800W Supply 2u Rack Server

Product Description

Product Parameters
Server Model Dell Poweredge R760 Server
Processor Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology
Memory • 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage controllers • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160
Drive Bays Front bays:
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies • 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1800W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 WTitanium 100-240 VAC or 240 HVDC, hot swap redundant
• 1100 W LVDC -48 - -60 VDC, hot swap redundant
• 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
Cooling Options Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate
Fans • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
• Up to 6 hot plug fans
Dimensions • Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 772.13 mm (30.39 inches) with bezel / 758.29 mm (29.85 inches) without bezel
Bezel Optional LCD bezel or security bezel
Open Manage Integrations • BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security • Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM card (optional)
Network options 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options Up to 2 x 350 W DW and 6 x 75 W SW
Warranty 3 years
Products Description
Dell PowerEdge R760 rack server
Dell PowerEdge R760 rack server
Provides performance and versatility as needed to address your most demanding applications. The new Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
Product Display

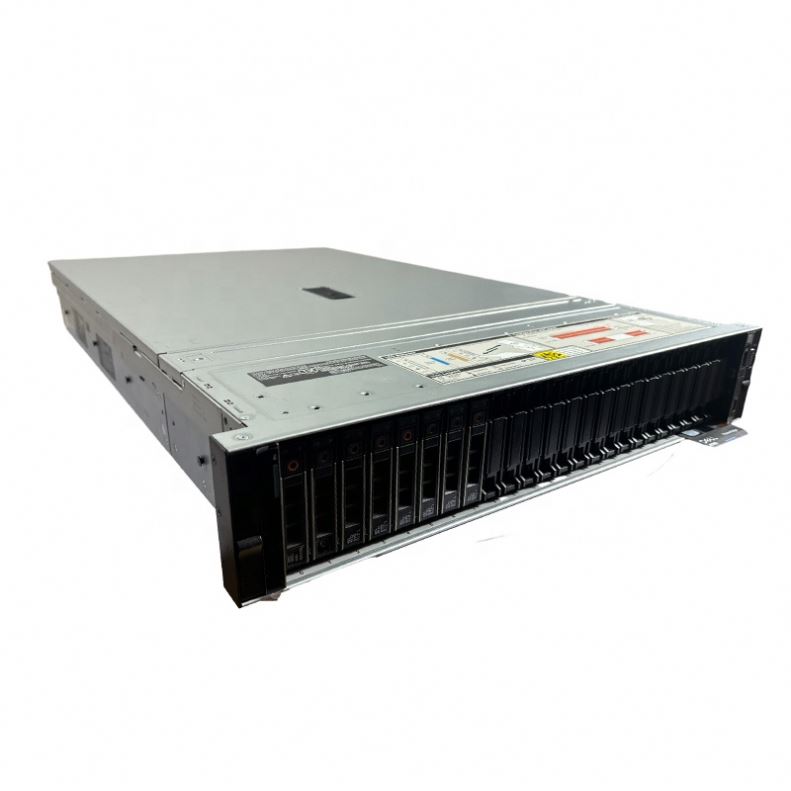

Dell PowerEdge R760 Display 1

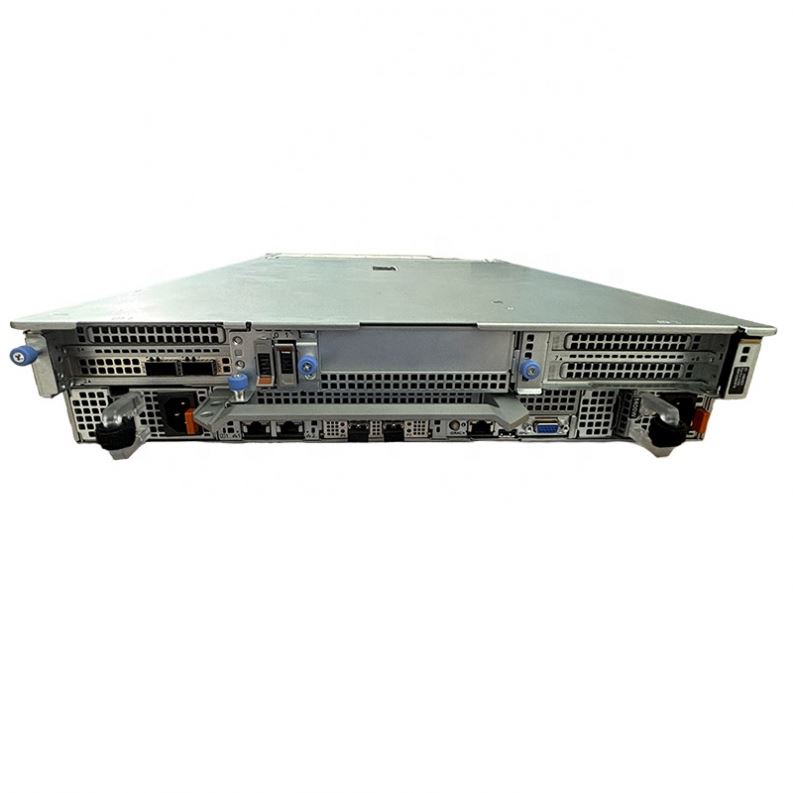

Dell PowerEdge R760 Display 2

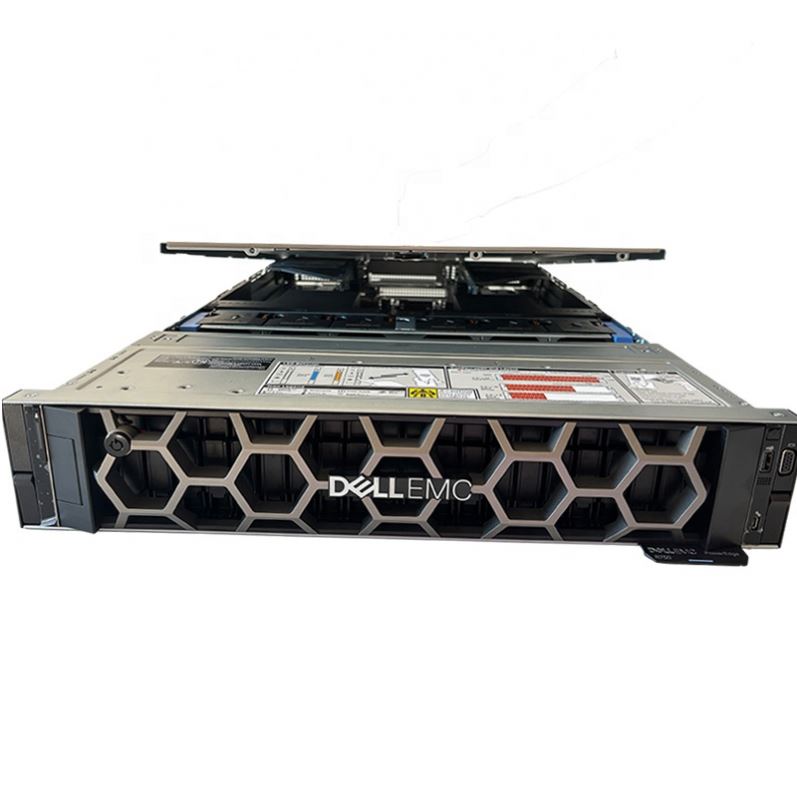

Dell PowerEdge R760 Display 3

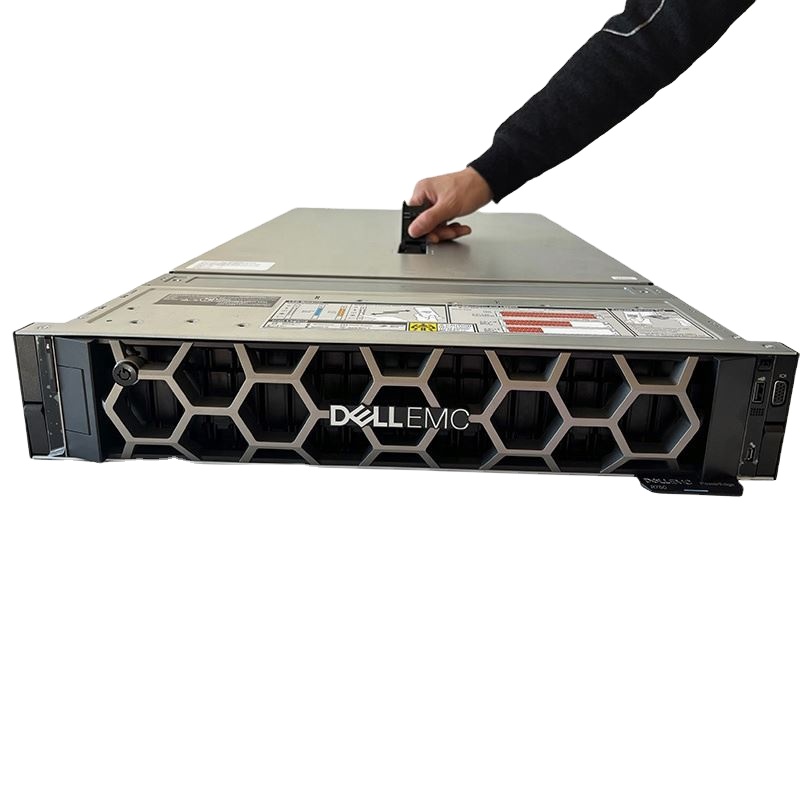

Dell PowerEdge R760 Display 4

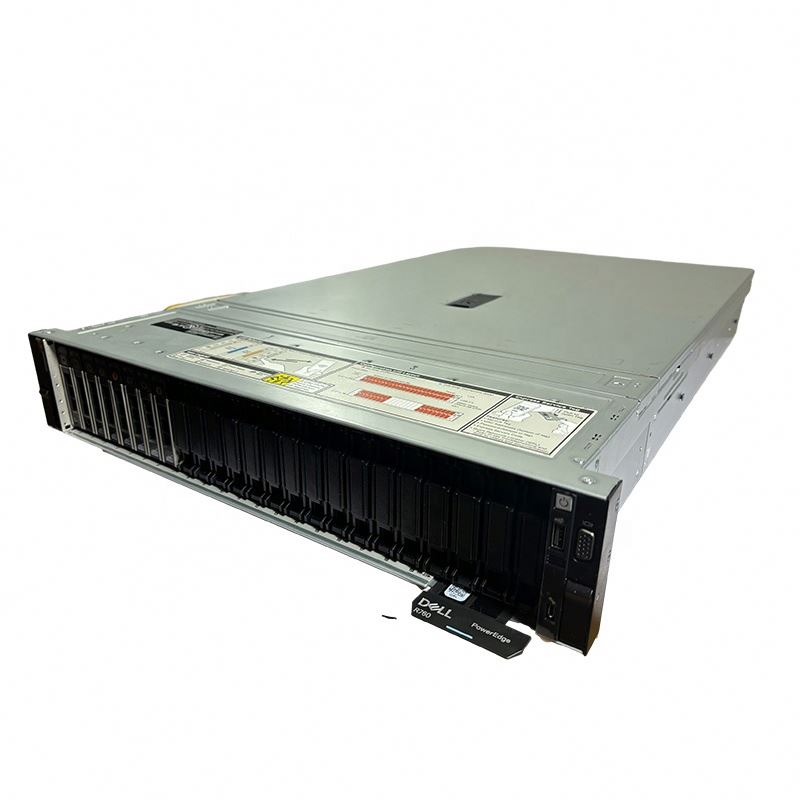

Dell PowerEdge R760 Display 5
Dell PowerEdge R760 Display 6
Dell PowerEdge R760 Display 7
