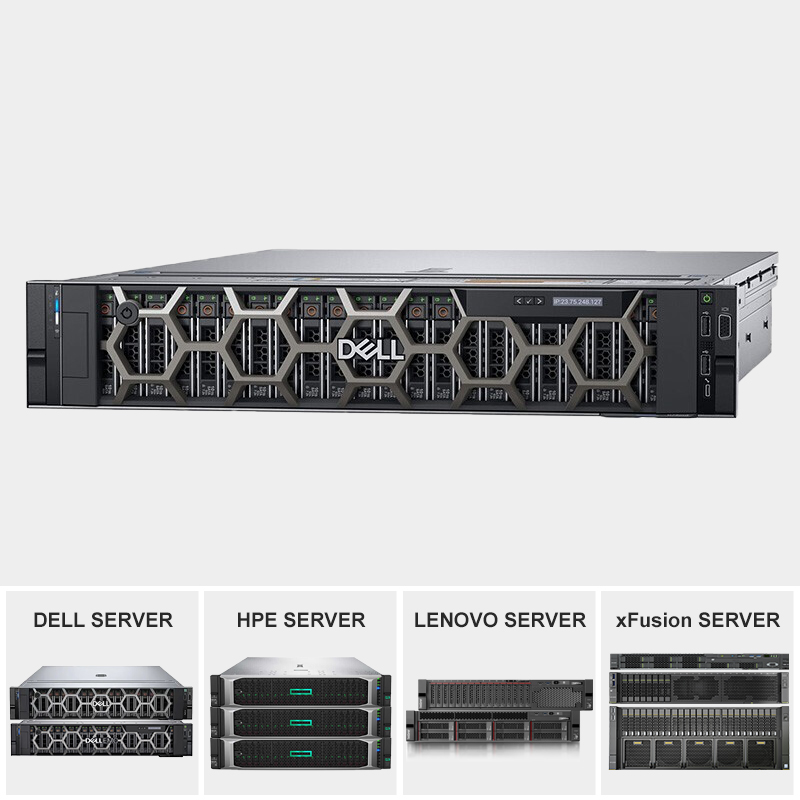

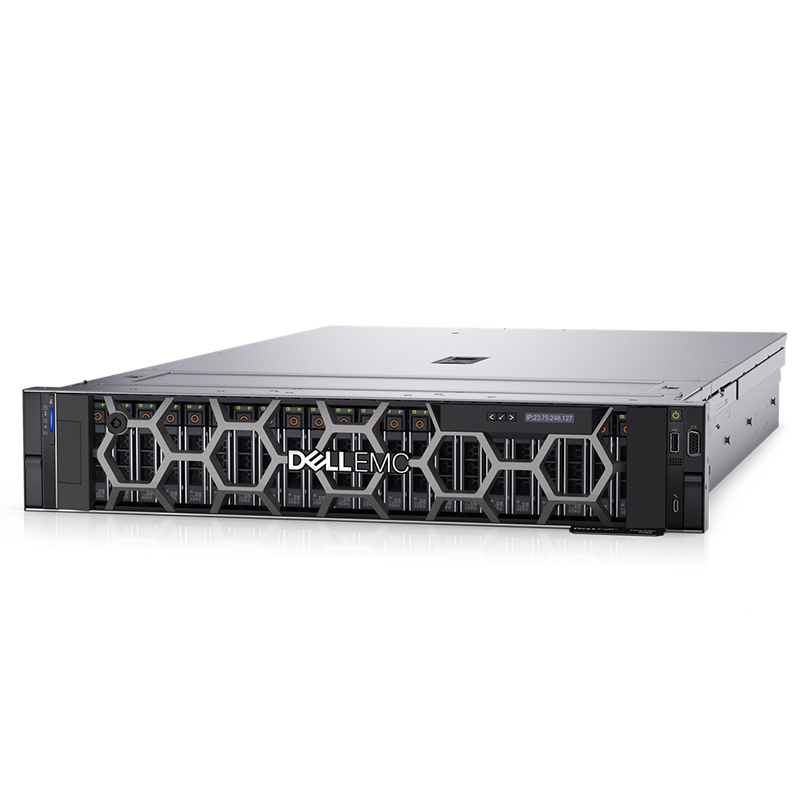

| Server Model | Dell Poweredge R750 Server |
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
| Memory | 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s |
| Storage controllers | • Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
| Storage controllers (Alt) | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E |
| GPU / Power Support | • 700 W Titanium HLAC/240 mixed mode • 800 W Platinum AC/240 mixed mode • 1100 W Titanium AC/240 mixed mode • 1100 W DC -48 - -60 V • 1400 W Platinum AC/240 mixed mode • 1800 W Titanium HLAC/240 mixed mode • 2400 W Platinum AC/240 mixed mode • 2800 W Titanium HLAC/240 mixed mode |
| Size | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel |
| Warranty | 3 years |
The Dell PowerEdge R750 Offers Compelling Performance, High Speed Memory and Capacity, I/O Bandwidth and Storage to Address Data Requirements.
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation.
As authorized partners for xFusion, Dell, HPE, and Lenovo, we provide:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
